UNI-T UT204+ Digital 600A AC/DC Numeral Pincer Multimeter Ammeter Anti-Burning Anti-Misdetection Clamp Meter Multifunction Electrician Current Measurement with True Effective Value, NCV Intelligent
UNI-T Digital Multimeter target measures current and probes measure voltage. AC DC Current Multimeter, having a hinged jaw integrated into an electrical. The jaws around a wire, cable or other conductors at any point in an electrical system, then measure the current in that circuit without disconnecting/de-energizing it.
Features Of UT 204+ Digital Clamp Meter:
- Auto range.
- True RMS.
- Non-contact voltage test (NCV).
- Live wire test.
- Continuity test.
- Diode test.
- MAX/MIN.
- Relative mode.
- ZERO mode.
- Data hold.
- Low battery indication.
- Auto power off.
Technical Specifications of Uni-t UT204+
| Function | Range | Accuracy |
|---|---|---|
| DC Current | 600 A | ±(2%+5) |
| AC Current | 600 A | ±(2%+5) |
| DC Voltage | 600 V | ±(0.5%+2) |
| AC Voltage | 600 V | ±(0.8%+5) |
| AC voltage frequency | 10 Hz~60 kHz | ±(0.5%+2) |
| Resistance | 40 Ω 6 kΩ ~ 600 kΩ 60 MΩ |
±(1.0%+2) ±(0.8%+2) ±(2.5%+5) |
| Capacitance | 60 nF ~ 600 µF 60 mF |
±(4%+5) ±(10%) |
| Temperature | -40°C~1000°C | ±(1.5%+5) |
| Frequency | 10 Hz~10 MHz | ±(0.1%+4) |
| General Specifications | ||
| Display | 6000 count, 37 mm × 25 mm | |
| Jaw opening | 28 mm | |

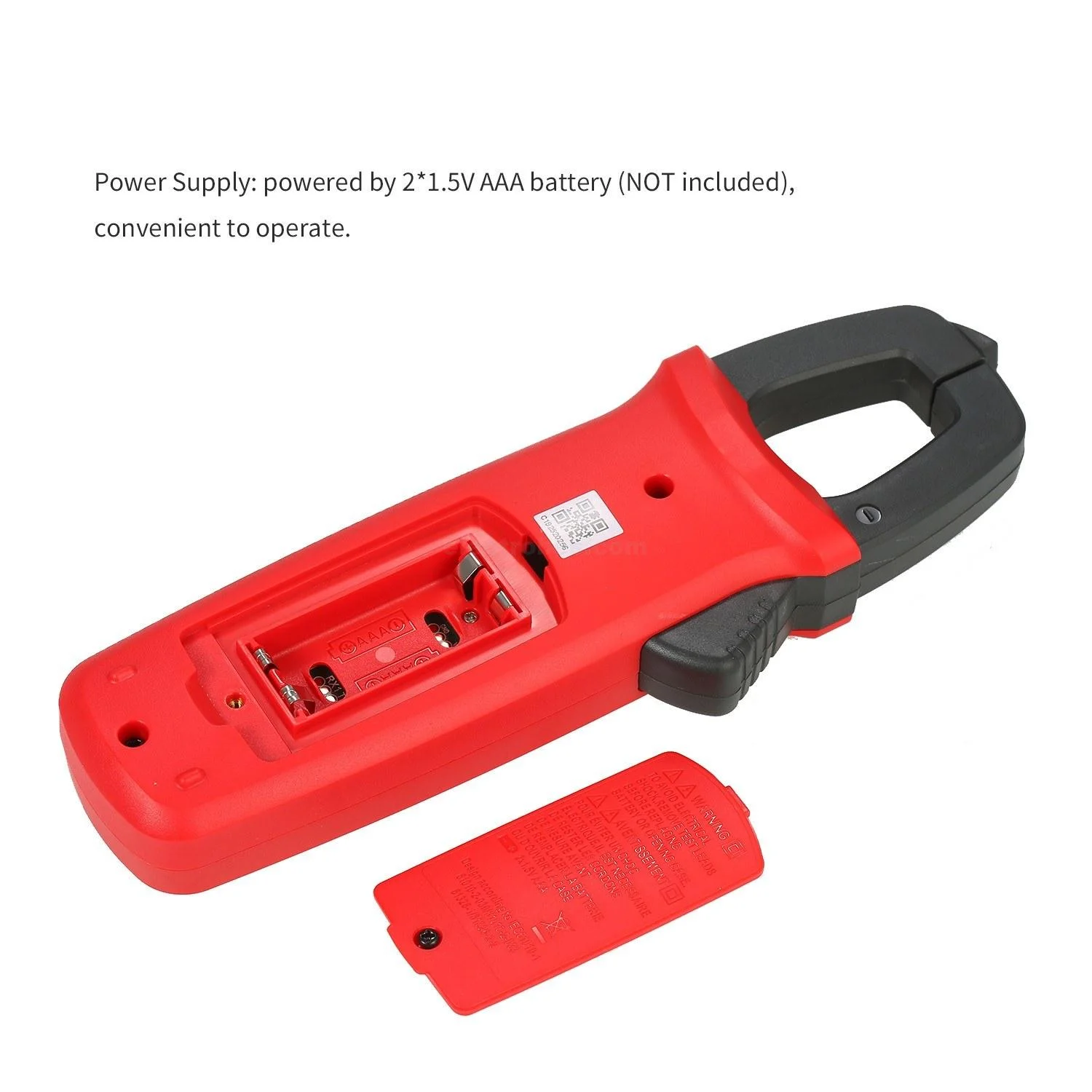

| Power | 1.5V battery (R03) × 2 pcs. | |
| Dimensions | 215 mm × 63 mm × 36 mm | |
| Weight | 235 g | |
Applications:
- Industrial electricity
- Residential electricity
- Air conditioning
- Automobile
User Manual
Download UNI-T UT204+ User Manual

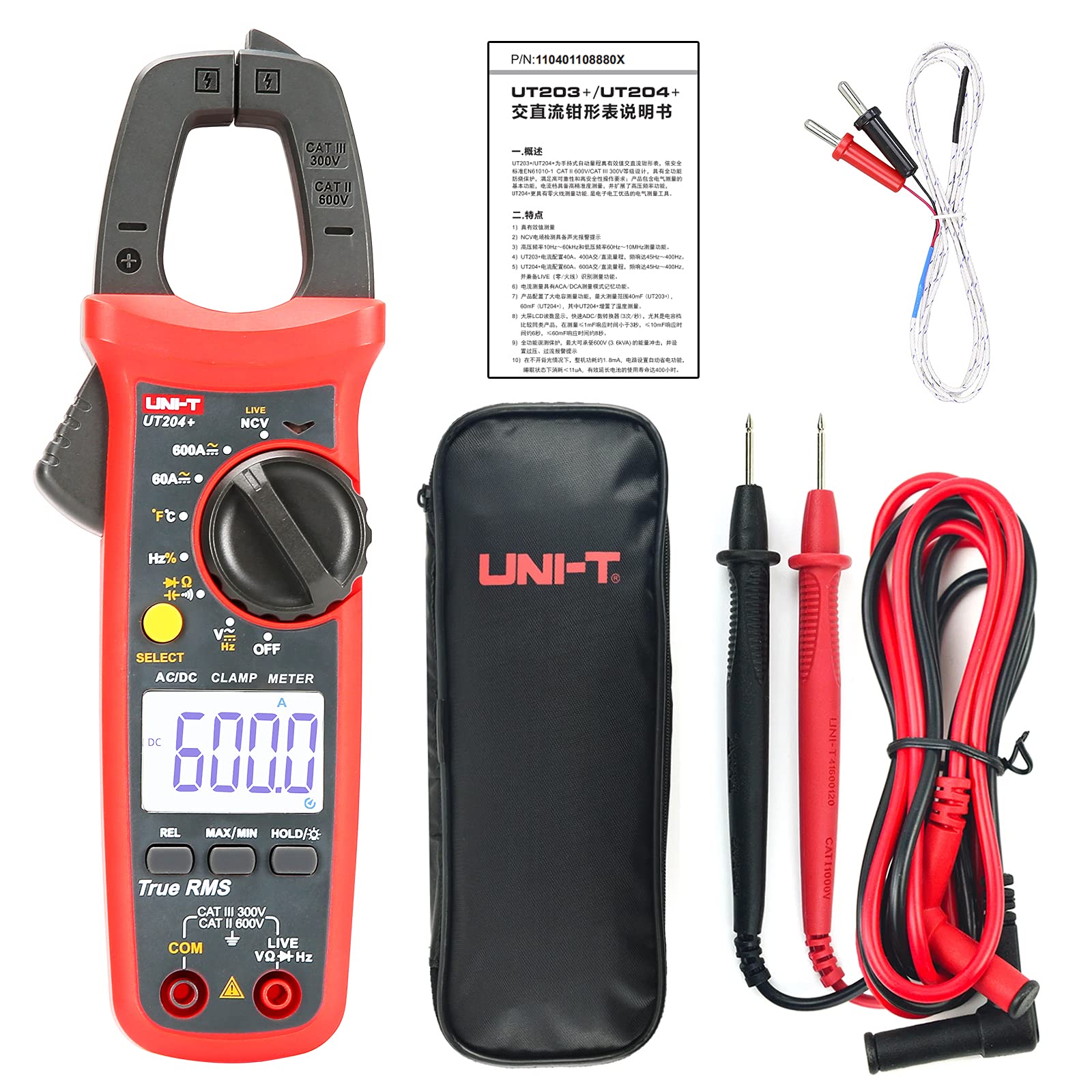

Package List:
1 * Clamp Meter
2 * Test
1 * Temperature Probe
1 * Storage Bag
1 * Manual (English)
