Satellite Finder Ws 6933

₨25,000.00 Original price was: ₨25,000.00.₨16,499.00Current price is: ₨16,499.00.

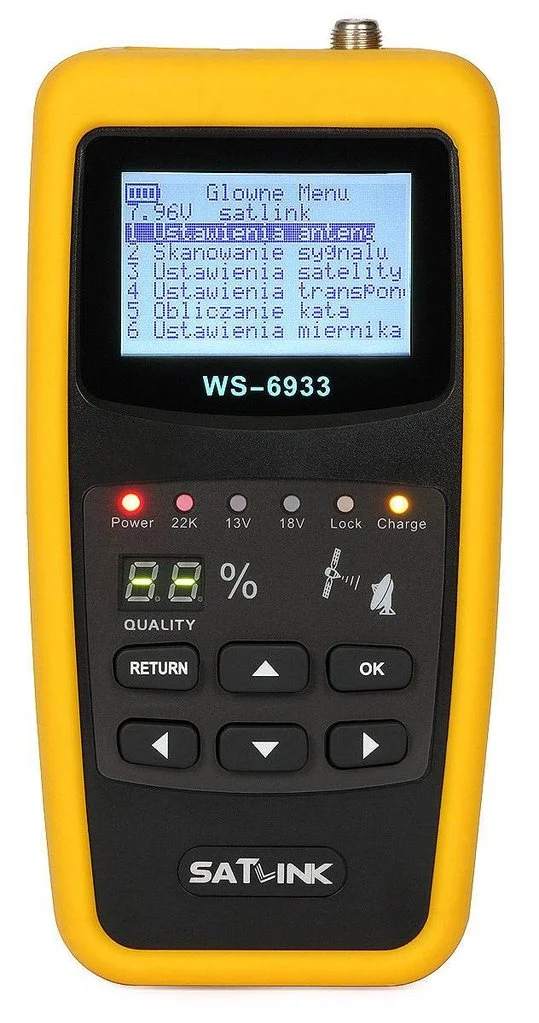

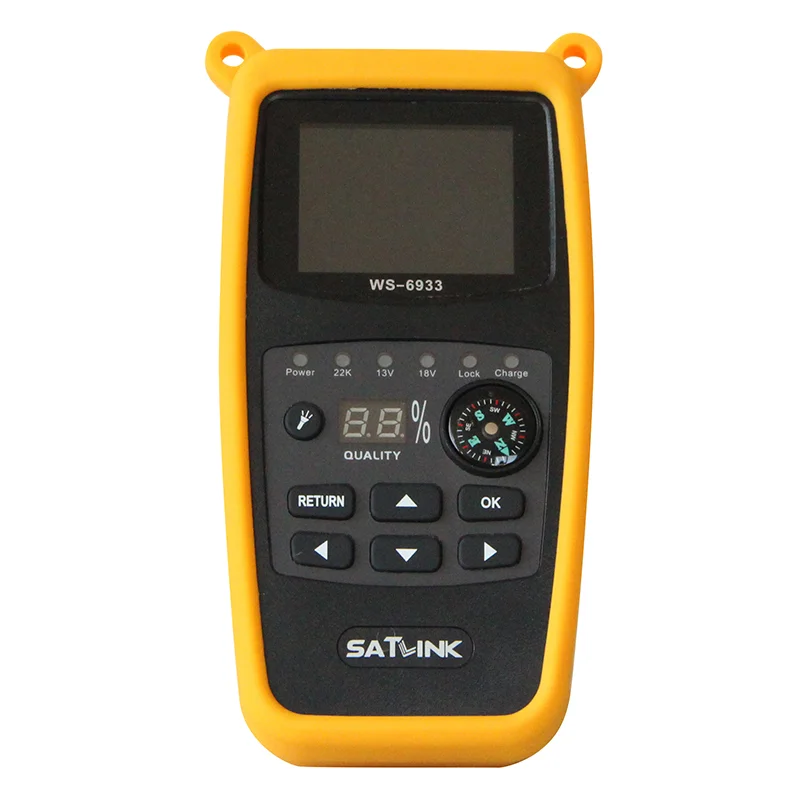

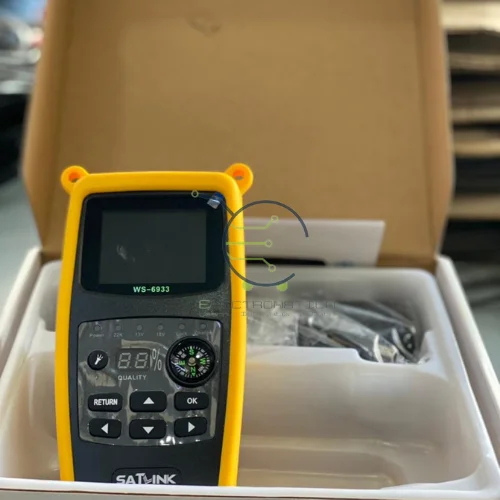

Digital Satellite Meter Satlink WS-6933 R10827 allows for the quick setup of satellite dishes.
Satlink WS-6933 R10827 has a clear menu that will help any installer to do the job quickly and effectively. The device incorporates a list of over ten popular satellites (plus transponders), which can be modified by the user. TheWS-6933 HD model can measure DVB-S2 signals, including HD channels. It comes with a power adapter and USB cable to connect to a PC.
The level of a signal is given in dBV and its quality as the percentage based on the C/N ratio. These parameters allow for precise alignment of the dish and LNB, as well as for testing signal levels and quality in systems with multi switches and amplifiers.
A built-in flashlight makes the device even more practical.
Categories: ,

Features:

The device finds the desired satellite in seconds.
The rear flashlight function can provide lighting.
The Satlink WS-6933 HD is a compact Satellliten Finder.
The device has a static NIT recognition for safe identify a received satellite signal.
If a satellite found an audible sound – signal and the measured values are displayed.
Satellite search, the satellite dish can be in contrast to traditional instruments turned very quickly.

Specification:

Size: Approx. 7.7 x 17 x 3.5cm/ 3.03 x 6.69 x 1.37″
Plug Type: EU plug (sent with an adapter according your country)
Input Frequency: 950~2150MHz
Input Level: -65~ -25dBm
Band Switch Control: 22KHz
LNB Supply: 13v/18v, IMAX.300mA
Demodulation Type: QPSK/ 8OSK/ 16APSK/ 32APSK
Symbol Rate: 2<Rs<45Mband (SCPC/MCPC)
LCD Type: TFT Positive transflective
Number Of Dots: 240(RGB) x 320
Active Area(WxH): 36.72 x 48.96mm
Connector: USB
Data Protocol: USB to RS-232
Li-ion Battery: 7.4v/ 800mah
Output: DC 12V/ 1A
Input: 100-240V AC, 50/60Hz
Power Consumption: MAX. 5W

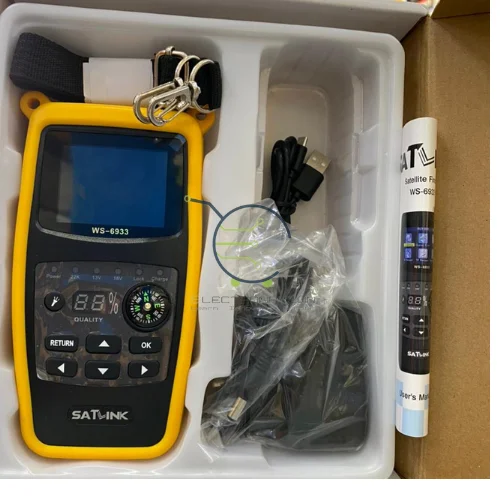

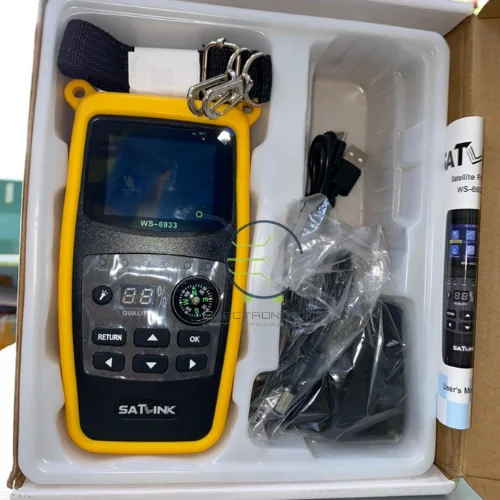

Package Included:
1 x Signal Finder Meter
1 x Protective Rubber Cover
1 x Power Adapter
1 x USB Cable
1 x Lanyard
1 x User Manual
