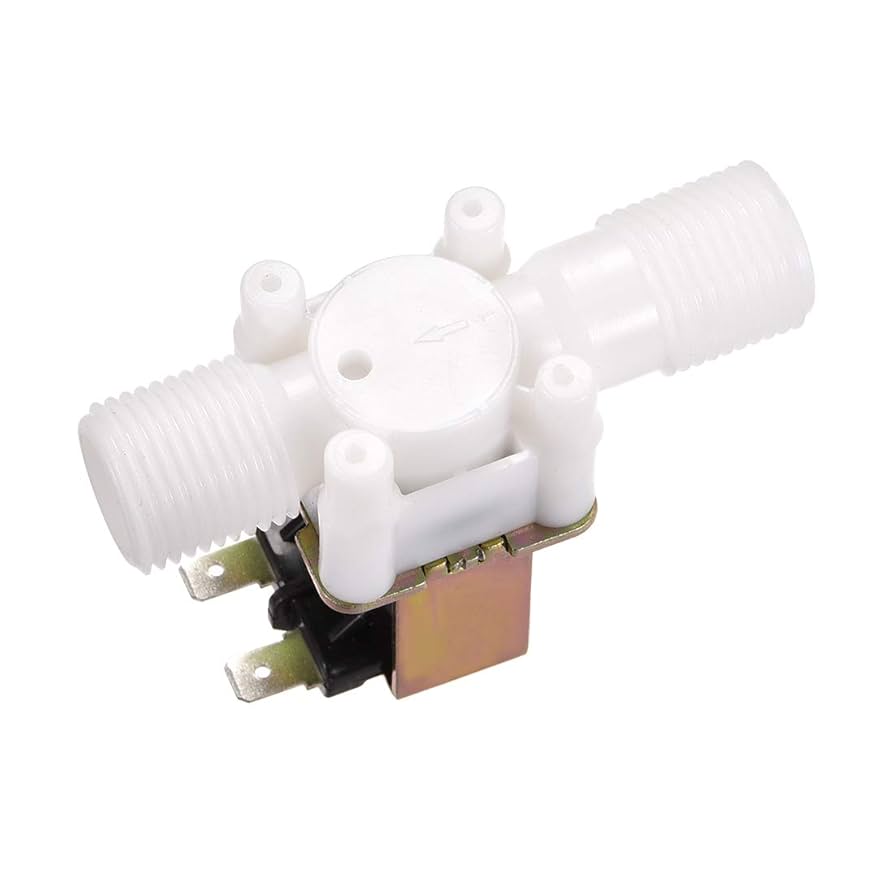

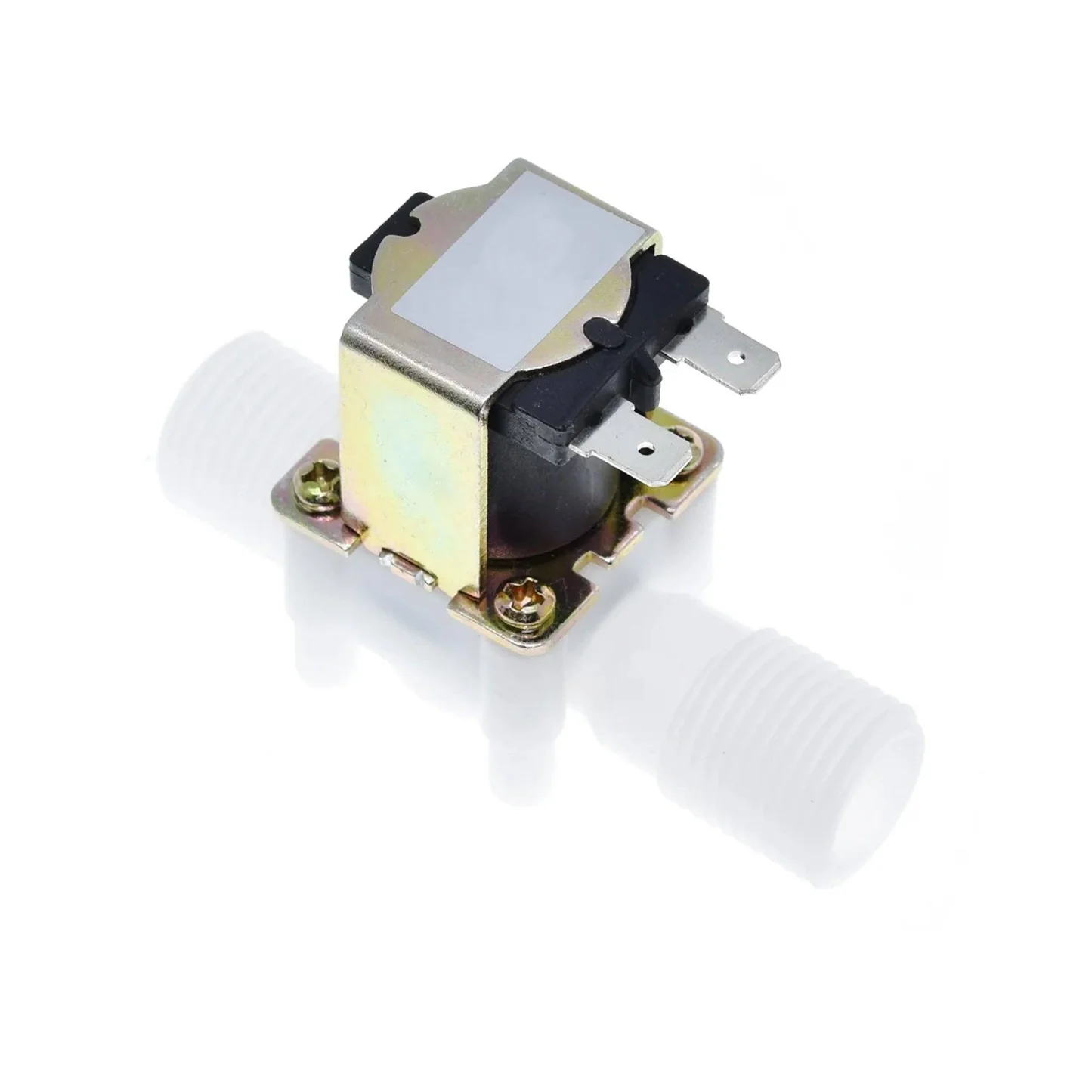

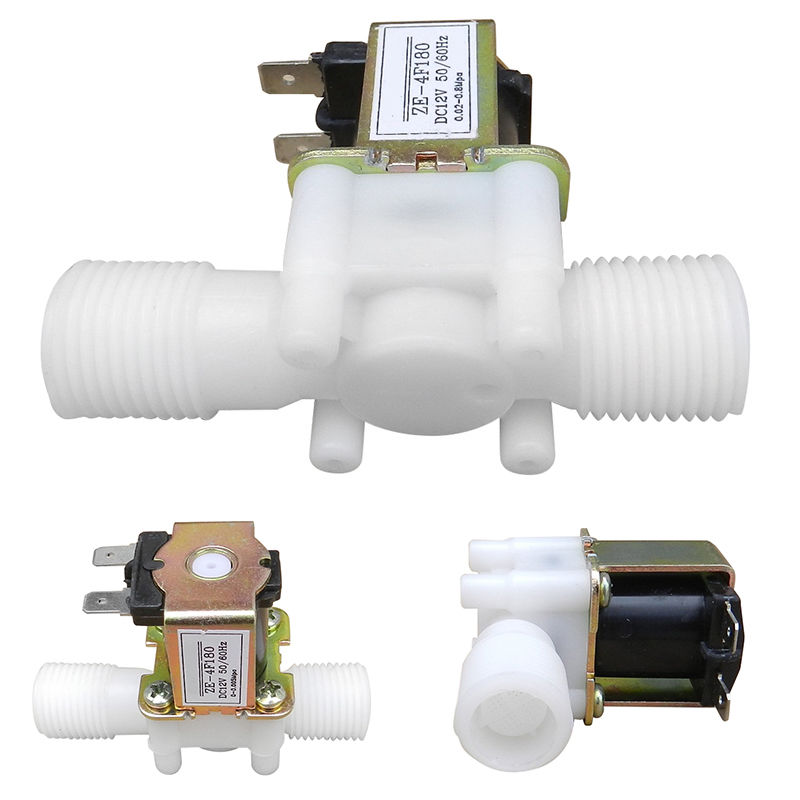

12V DC Water/Gas Flow Solenoid Valve Normally Closed
Features:
- The valve body is made of all-plastic material, with 4 points of external thread on both ends of the valve body. The valve body is simple, the power terminal is insert type, and the 6.3 spring is used.
- The coil is packaged with international top-grade coil packaging material, and has the advantages of waterproof, moisture-proof, wear-resistant, corrosion-resistant, and high-low low-temperature resistance.
- The insulation grade is high, and the heat dissipation effect is good. Under normal conditions, the product can be used for a long time.
- This valve is a normally closed solenoid valve, that is, it is energised to turn on (water), and the power is off (water cut).
- This is a micro pressure valve (pressure), suitable for 0.02-0.8MPA water pressure. Please choose according to your actual needs.
Specifications 12v Solenoid Valve:
- Voltage: 12V DC.
- Valve type: diaphragm (Operated by Servo).
- Mode of operation: Normally closed.
- Fluid temperature: 1-100 ℃.
- Size: 8.5cm x 6cm x 4.3cm.
- 1/2″ Nominal NPS
- Working Pressure: 0.02 Mpa – 0.8 Mpa
- Working Temperature: 1 ℃ – 75 ℃
- Response time (open): ≤ 0.15 sec
- Response time (close): ≤ 0.3 sec
- Actuating voltage: 12VDC (but we found it would work down to 6V)
- Actuating life: ≥ 50 million cycles
- Weight: 4.3 oz
- Rated Power: 5W
Flow characteristic (Water Pressure / FLOW):
- 0.8MPa / ＜25L/min
- 0.3MPa / ＞10L/min
- 0.1MPa / 5L/min
- 0.02MPa / ＞3L/min
Usage of 1/2 12v Solenoid Valve:
- Water and low viscosity fluids.
- Gases
Package Includes:
- 1 x 12V DC Solenoid valve Water/Gas flow
