Power Module for APM 2.8 and quadcopters

Name: Power Module for APM 2.8 and quadcopters
SKU: 34417
Availability: InStock

~~₨1,950.00~~ ₨1,599.00

Power Module for APM 2.8 and quadcopters is a simple way of providing your APM/Arduflyer with clean power from a LiPo battery as well as current consumption and battery voltage measurements, all through a 6P cable. The on-board switching regulator outputs 5.3V and a maximum of 3A from up to a 7S LiPo battery.

Note: The Power Module is only designed to power APM/Arduflyer, a RC receiver and accessories (GPS, Radio telemetry). It is not designed to power servos. Use your aircraft’s own ESC/BEC for that.

Categories: Multicopter Accesories, Others

Description
Reviews (0)

Power Module for APM 2.8 and quadcopters

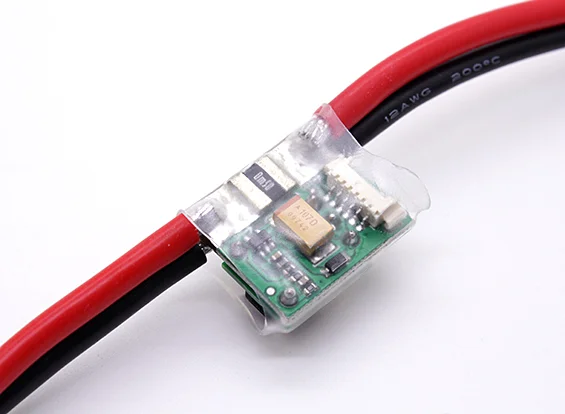

The APM 2.8 Power Module is a simple way of providing your APM 2.8 with clean power from a LiPo battery as well as current consumption and battery voltage measurements, all through a 6-pos cable. The on-board switching regulator outputs 5.3V and a maximum of 2.25A from up to a 4S LiPo battery. The Power Module comes completely assembled with Deans connectors, and wrapped in shrink tubing for protection.

Max input voltage: 25V
Max current sensing: 90A
Voltage and current measurement configured for 5V ADC
Switching regulator outputs 5.3V and 2.25A max
6-pos DF13 cable plugs directly to APM 2.5s PM connecto
For APM 2.8 PIX PIXHAWK

Specifications of Power Module for APM 2.8:
