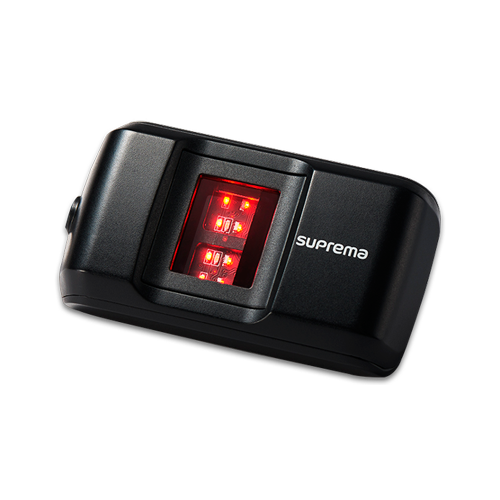

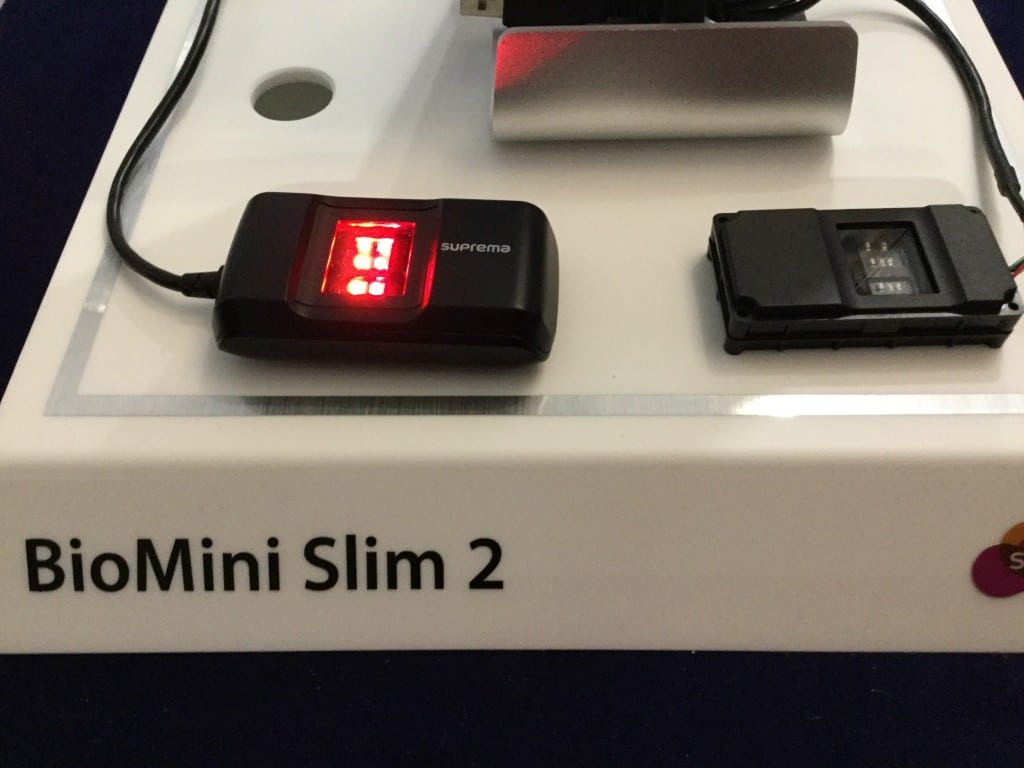

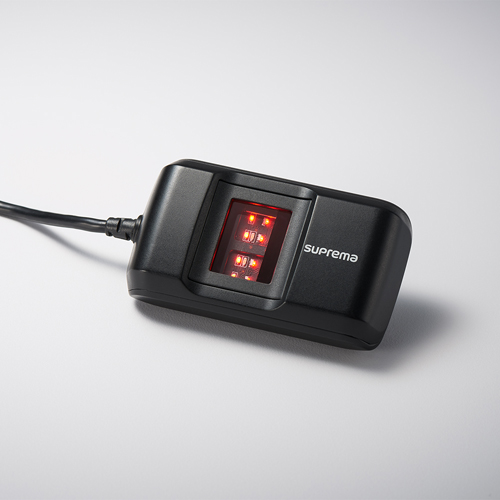

Xperix BioMini Slim 2 – Ultra-Slim FAP20 Fingerprint Scanner with Live Finger Detection

The BioMini Slim 2 by Xperix is a high-performance, ultra-compact fingerprint scanner designed for secure authentication in a wide range of environments. Featuring the world’s slimmest FAP20 optical sensor, it meets FBI PIV and FBI Mobile ID FAP20 standards, making it ideal for law enforcement, government, enterprise, and mobile ID applications.

This next-generation biometric device incorporates Live Finger Detection (LFD) using machine learning to accurately distinguish between genuine and fake fingerprints made from materials like clay, rubber, silicone, glue, and film. Its Multi-Dynamic Range (MDR) technology ensures high-quality image capture even under challenging conditions, including wet or dry fingers and direct sunlight up to 100,000 lux.

With broad compatibility and a compact design, the BioMini Slim 2 is easy to integrate into custom applications via its SDK, supporting Windows, Linux, and Android (4.1 and above).

Key Features:

• FBI PIV and FBI Mobile ID FAP20 certified

• World’s slimmest FAP20 optical sensor (13.5mm thickness)

• Advanced Live Finger Detection (LFD) using AI pattern analysis

• Multi-Dynamic Range (MDR) for accurate imaging in varying light conditions

• High-speed USB 2.0 interface

• Scratch-resistant optic glass sensor surface

• Seamless integration with SDKs for Windows, Linux, and Android platforms

• Supports various image formats: RAW, BMP, WSQ, ISO 19794-4

• No password needed – supports instant login with Windows Hello

Specifications:

• Sensor Type: Optical

• Resolution: 500+ PPI (exact value redacted in scan)

• Image Size: Approx. 320 x 480 pixels

• Sensing Area: ~16.5mm x 21.0mm

• Dimensions: 40.4 x 95.4 x 16.4 mm

• Weight: 60g

• Operating Temp: -10°C to 50°C

• Humidity: 10% to 90% RH

• Ingress Protection: IP65 (sensor surface)

• Certifications: CE, FCC, KC, RoHS, USB-IF, WHQL, REACH, WEEE, UL, IEC, CB

Whether you’re building a secure login system, a mobile ID solution, or need a compact fingerprint scanner with enterprise-grade reliability, the Xperix BioMini Slim 2 delivers advanced biometric performance in a sleek and durable package.
