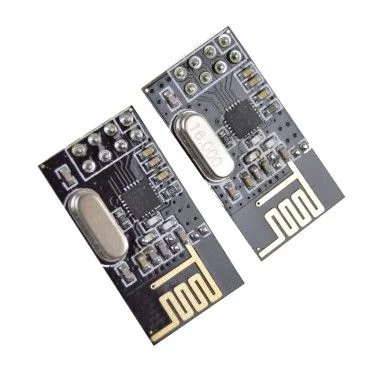

NRF24L01 Antenna Pair
NRF24L01 Antenna pair Wireless Transceiver Module. The nRF24L01 is a highly integrated, ultra-low power (ULP) 2Mbps RF transceiver IC for the 2.4GHz ISM (Industrial, Scientific, and Medical) band.
Radio Frequency
The nRF24L01+ transceiver module is designed to operate in 2.4 GHz worldwide ISM frequency band and uses GFSK modulation for data transmission. The data transfer rate can be one of 250kbps, 1Mbps and 2Mbps.
Power consumption
The operating voltage of the module is from 1.9 to 3.6V, but the good news is that the logic pins are 5-volt tolerant, so we can easily connect it to an Arduino or any 5V logic microcontroller without using any logic level converter.
The module supports programmable output power viz. 0 dBm, -6 dBm, -12 dBm or -18 dBm and consumes unbelievably around 12 mA during transmission at 0 dBm, which is even lower than a single LED. And best of all, it consumes 26A in standby mode and 900 nA at power down mode. That’s why they’re the go-to wireless device for low-power applications.
SPI Interface
The nRF24L01+ transceiver module communicates over a 4-pin Serial Peripheral Interface (SPI) with a maximum data rate of 10Mbps. All the parameters such as frequency channel (125 selectable channels), output power (0 dBm, -6 dBm, -12 dBm or -18 dBm), and data rate (250kbps, 1Mbps, or 2Mbps) can be configured through SPI interface.
The SPI bus uses a concept of a Master and Slave, in most common applications our Arduino is the Master and the nRF24L01+ transceiver module is the Slave. Unlike the I2C bus the number of slaves on the SPI bus is limited, on the Arduino Uno you can use a maximum of two SPI slaves i.e. two nRF24L01+ transceiver modules.
Specifications NRF24L01 Antenna Pair:
Frequency Range | 2.4 GHz ISM Band |
Maximum Air Data Rate | 2 Mb/s |
Modulation Format | GFSK |
Max. Output Power | 0 dBm |
Operating Supply Voltage | 1.9 V to 3.6 V |
Max. Operating Current | 13.5mA |
Min. Current(Standby Mode) | 26A |
Logic Inputs | 5V Tolerant |
Communication Range | 800+ m (line of sight) |
