5V 1604 LCD 16×4 Character LCD Screen

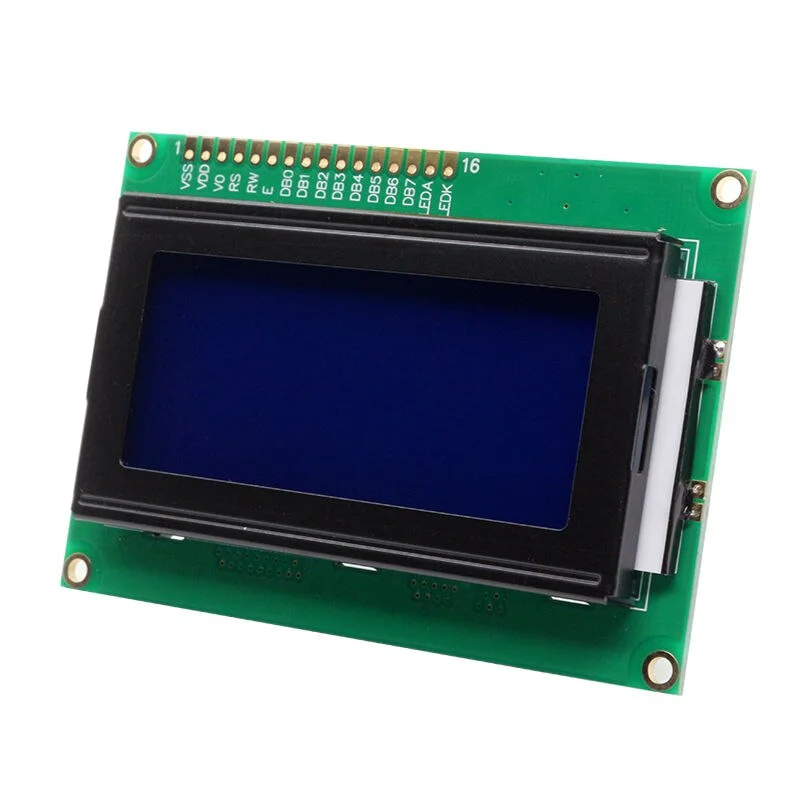

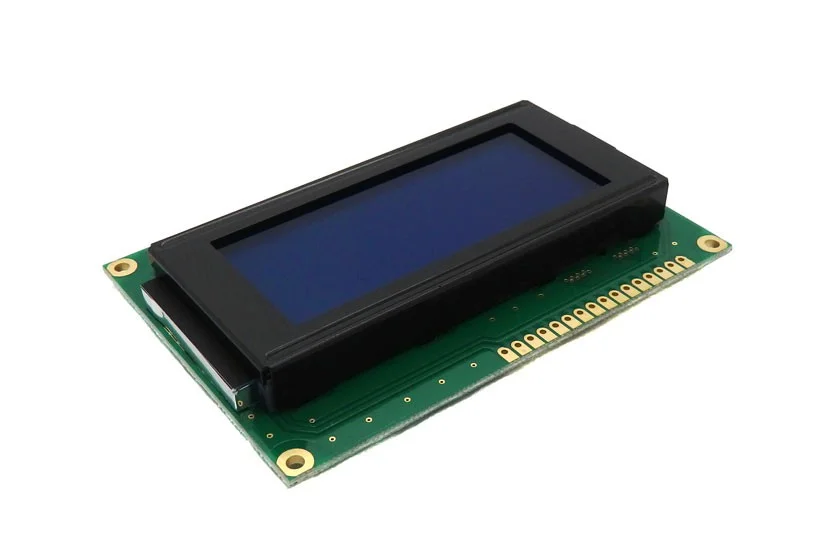

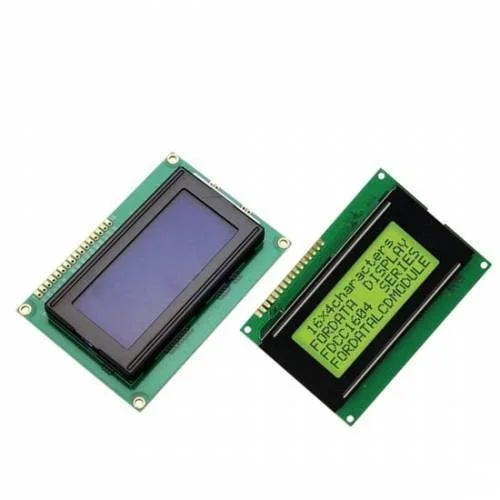

5V 1604 LCD 16×4 Character LCD Screen Display is 16 characters wide,4 rows character lcd module,SPLC780C controller (Industry-standard HD44780 compatible controller),6800 4/8-bit parallel interface, single led backlight with white color included can be dimmed easily with a resistor or PWM, stn- blue lcd negative, white text on the blue color, wide operating temperature range, rohs compliant, built in character set supports English/Japanese text, see the SPLC780C datasheet for the full character set. It’s optional for pin header connection,5V or 3.3V power supply and I2C adapter board for Arduino.
It can be used in any embedded systems, industrial device, security ,medical and hand-held equipment.
Lcd 16X4 is a dot-matrix liquid crystal display module specially used for displaying letters, numbers, symbols, etc. 16×4 LCD Display can display 4 lines with 16characters in each line. Divided into 4-bit and 8-bit data transmission methods. 1604 Green Character LCD provides rich command settings: clear display; cursor return to origin; display on/o; cursor on/o; display character ashes; cursor shift; display shift, etc.
Specification of Lcd 16X4
| Gross Weight (kg) | 0.0770 |
|---|---|
| Manufacturer | EastRising |
| Part Number | ERMC1604SBS-1 |
| Display Format | 16×4 Character |
| Interface | 6800 4-bit Parallel , 6800 8-bit Parallel |
| IC or Equivalent | AIP31066 , HD44780, KS0066 , SPLC780 , ST7066 |
| Appearance | White on Blue |
| Connection | Pin Header |
| Outline Dimension | 87.0(W)x60.0(H)x12.9(T)mm |
| Visual Area | 62.00×27.20mm |
| Active Area | 56.21×20.81mm |
| Dot (Pixel) Size | 0.56×0.56mm |
| Dot (Pixel) Pitch | 0.60×0.60mm |
| IC Package | COB |
| Display Type | STN-LCD Blue |
| Touch Panel Optional | No |
| Sunlight Readable | No |
| Viewing Direction | 6:00 |
| Backlight Current (Typ) | 45mA |
| Power Supply(Typ) | 3.3V, 5V |
| Supply Current for LCM(Max) | 1500uA |
| Operating Temperature | -20~70C |
| Storage Temperature | -30~80C |
