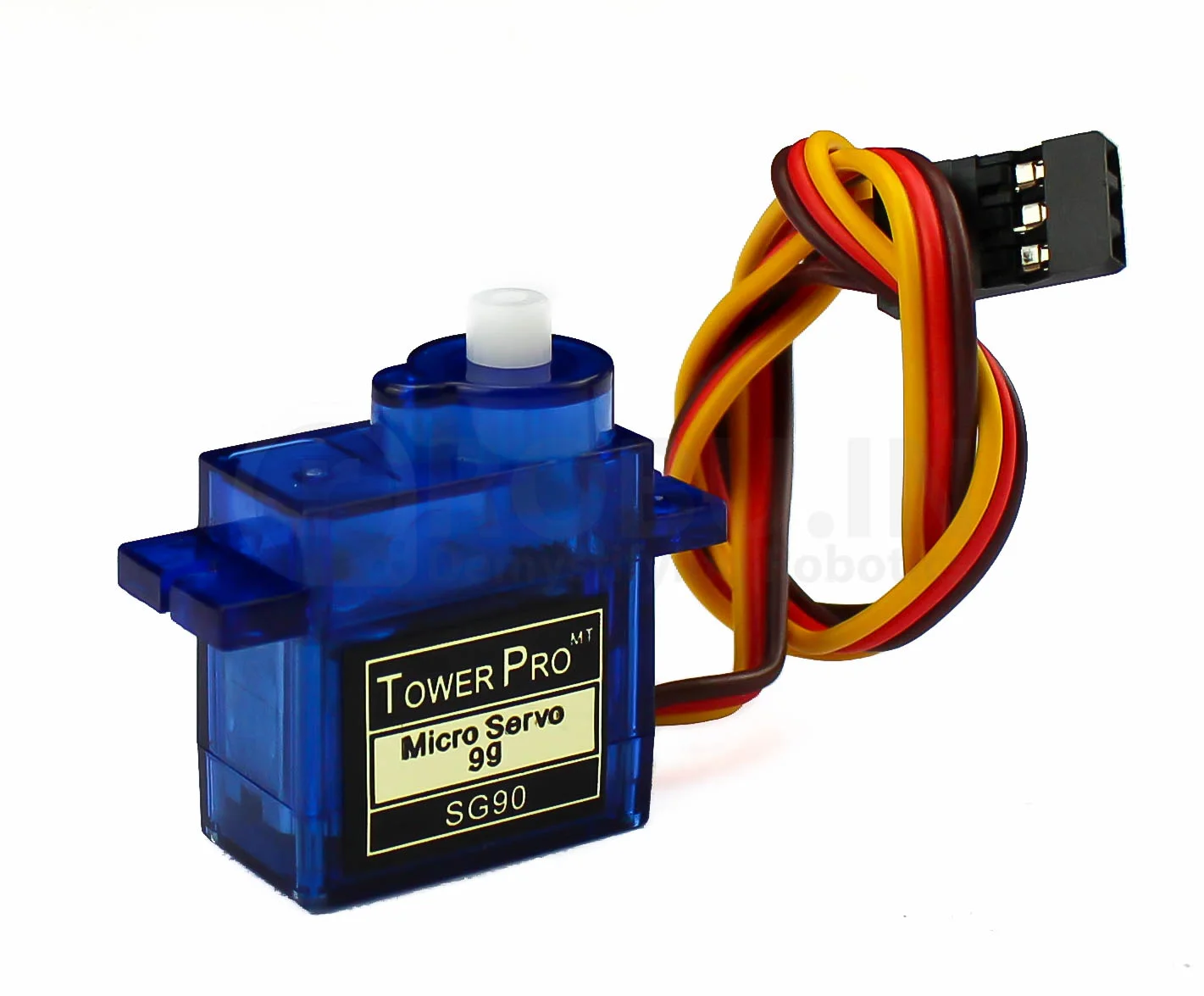

TowerPro Servo Motor SG90 MINI SERVO
The TowerPro SG90 mini servo motor is lightweight, high-quality, and lightning-fast. The servo is designed to work with almost all radio control systems. It is with excellent performance that brings you to another horizon of flight. The SG90 mini servo with accessories is perfect for R/C helicopter, plane, car, boat, and truck use.
| Wire Number | Wire Colour | Description |
| 1 | Brown | The ground wire connected to the ground of the system |
| 2 | Red | Powers the motor typically +5V is used |
| 3 | Orange | PWM signal is given in through this wire to drive the motor |
TowerPro SG-90 Features
- Operating Voltage is +5V typically
- Torque: 2.5kg/cm
- The operating speed is 0.1s/60
- Gear Type: Plastic
- Rotation: 0-180
- Weight of motor: 9gm
- The package includes gear horns and screws
Applications
- Used as actuators in many robots like Biped Robot, Hexapod, robotic arm, etc.
- Commonly used for a steering system in RC toys
- Robots where position control is required without feedback
- Less weight hence used in multi DOF robots like humanoid robots
