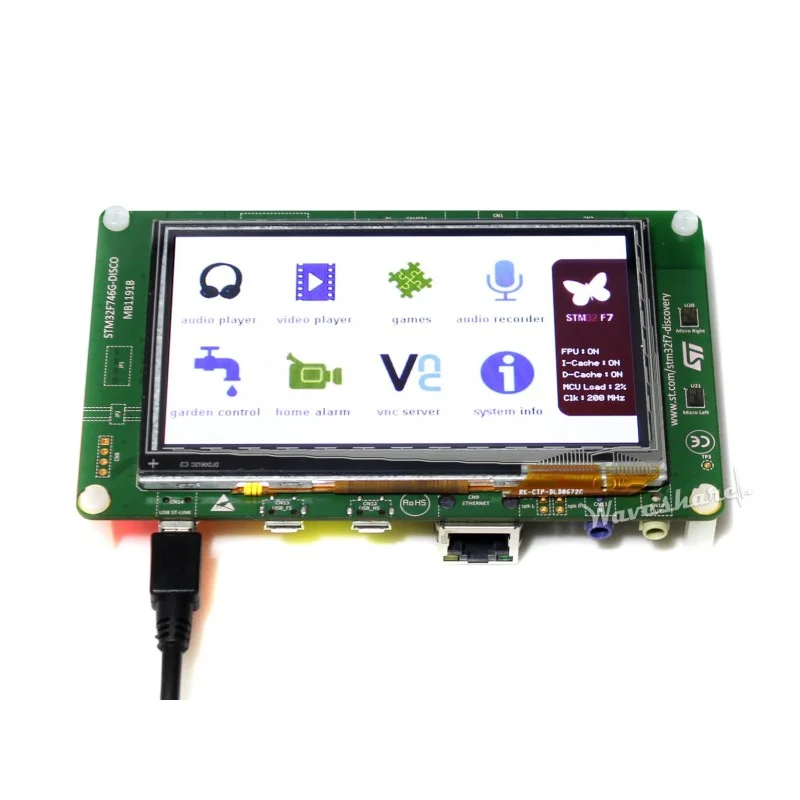

STM32F746G-DISCO

20,000.00 Original price was: ₨20,000.00.16,500.00Current price is: ₨16,500.00.

32F746GDISCOVERY, Discovery kit with STM32F746NG MCU

Out of stock

Out of stock

Categories: ,

Features

  • STM32F746NGH6 microcontroller featuring 1 Mbytes of Flash memory and 340 Kbytes of RAM, in BGA216 package
  • On-board ST-LINK/V2-1 supporting USB re-enumeration capability
  • Mbed-enabled (mbed.org)
  • USB functions: virtual COM port, mass storage, debug port
  • 4.3-inch 480×272 color LCD-TFT with capacitive touch screen
  • Camera connector
  • SAI audio codec
  • Audio line in and line out jack
  • Stereo speaker outputs
  • Two ST MEMS microphones
  • SPDIF RCA input connector
  • Two pushbuttons (user and reset)
  • 128-Mbit Quad-SPI Flash memory
  • 128-Mbit SDRAM (64 Mbits accessible)
  • Connector for microSD card
  • RF-EEPROM daughterboard connector
  • USB OTG HS with Micro-AB connectors
  • USB OTG FS with Micro-AB connectors
  • Ethernet connector compliant with IEEE-802.3-2002
  • Five power supply options:
  • ST LINK/V2-1
  • USB FS connector
  • USB HS connector
  • VIN from Arduino connector
  • External 5 V from connector
  • Power supply output for external applications: 3.3 V or 5 V
  • Arduino Uno V3 connectors
  • Comprehensive free software including a variety of examples, part of STM32Cube package
  • Supported by a wide choice of integrated development environments
