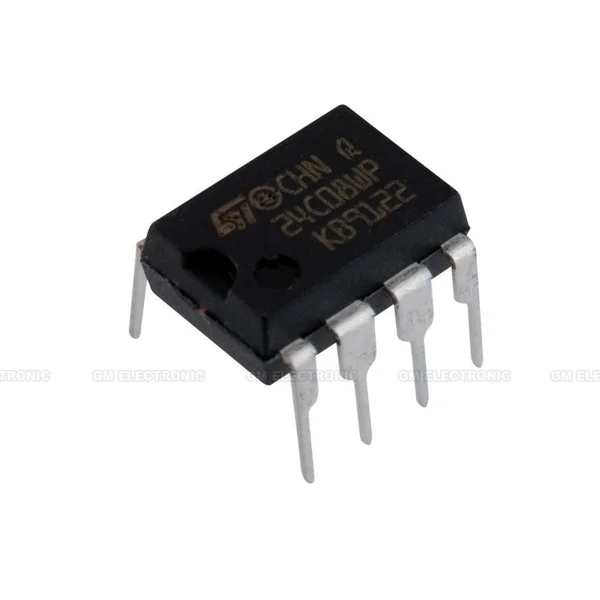

Features

• Compatible with all I2C bus modes:
  – 400 kHz
  – 100 kHz
• Memory array:
  – 8 Kbit (1 Kbyte) of EEPROM
  – Page size: 16 bytes
• Single supply voltage:
  – M24C08-W: 2.5 V to 5.5 V
  – M24C08-R: 1.8 V to 5.5 V
  – M24C08-F: 1.7 V to 5.5 V (full temperature
  range)
  and 1.6 V to1.7 V (limited temperature
  range)
• Write:
  – Byte Write within 5 ms
  – Page Write within 5 ms
• Operating temperature range: from -40 °C up
  to +85 °C
• Random and sequential Read modes
• Write protect of the whole memory array
• Enhanced ESD/Latch-Up protection
• More than 4 million Write cycles
• More than 200-year data retention
