Interfacing EMG Muscular Signal Sensor

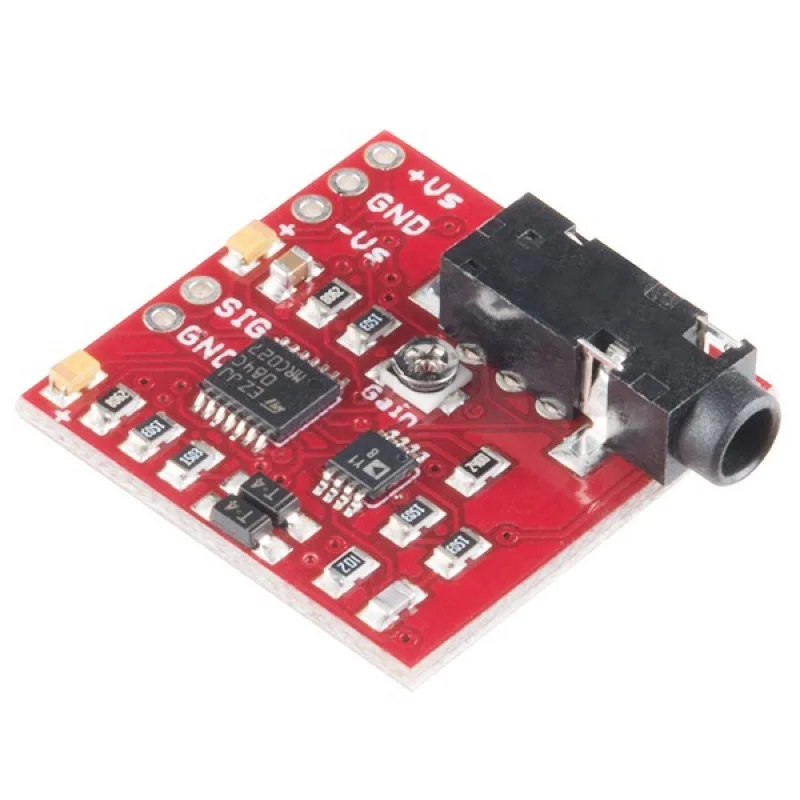

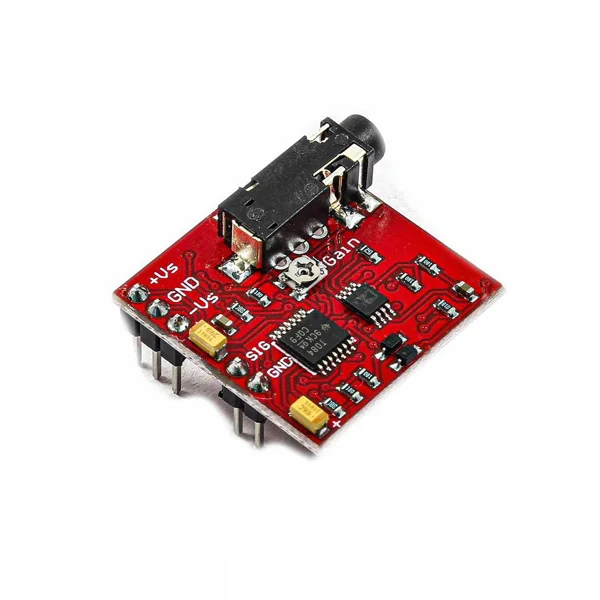

Interfacing EMG Muscular Signal Sensor use In medical research, measuring the activity, contraction and expansion of muscles is important. The EMG muscle sensor measures the muscle activity and produces a signal to show the amount of expansion and contraction. Therefore, the output depends on the amount of activity in the selected muscle. 3 Green, red and yellow electrodes connect to the module for transmitting electrical signals from the muscle motion.

Features:

• Small Form Factor
• Specially Designed for Micro-controllers
• Adjustable Gain using onboard potentiometer
• 5 mm Connector

Applications:

• Video games
• Robotics
• Medical equipment
