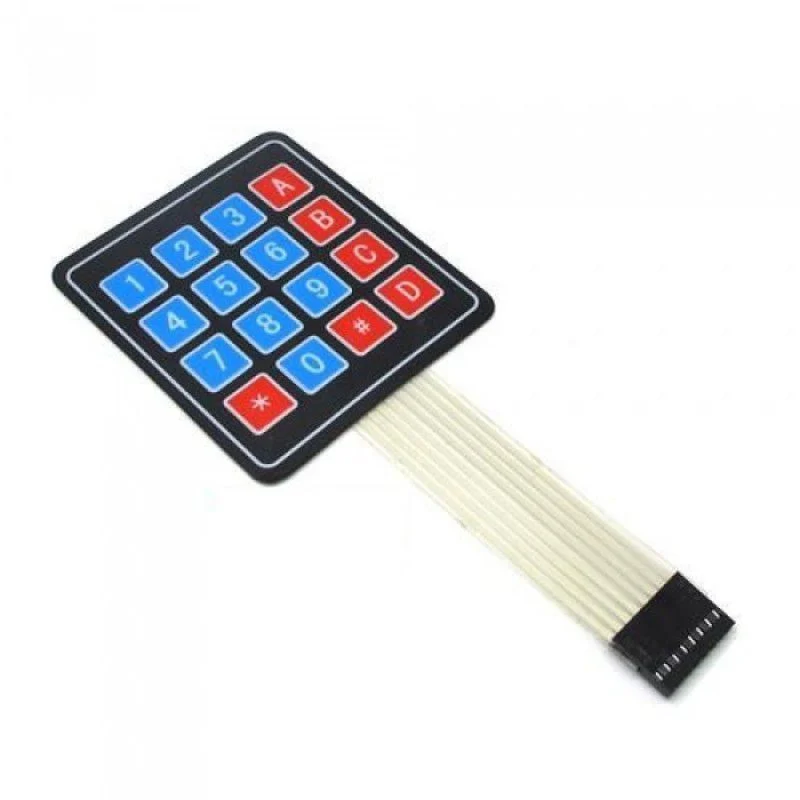

4×4 Flat Matrix Keypad

The 4×4 Flat Matrix Keypad is a compact and versatile input device commonly used in electronic projects and embedded systems. It provides a convenient interface for users to input numeric or alphanumeric data, making it suitable for applications such as security systems, access control, and interactive electronic projects. With its 4×4 matrix layout, it allows for a total of 16 programmable keys.

Specifications of 4×4 Flat Matrix Keypad:

• Keypad Layout: 4×4 matrix layout, consisting of 16 keys arranged in four rows and four columns.
• Size: Typically measures 76mm x 69mm (Length x Width).
• Number of Keys: 16 programmable keys, each with a unique position in the matrix.
• Input Method: When a key is pressed, it generates a unique combination of row and column signals, which can be decoded to identify the pressed key.
• Interface: Typically interfaces with microcontrollers or embedded systems using digital I/O pins.
• Material: Made of durable and lightweight materials suitable for various environments.
• Compatibility: Compatible with a wide range of microcontrollers and development boards.
• Application: Commonly used in projects requiring user input, password entry, or menu navigation.

Features of 4×4 Flat Matrix Keypad:

• Compact Design: The 4×4 matrix layout provides a compact and efficient design for inputting data.
• Versatile Use: Suitable for a variety of applications, from security systems to interactive electronics projects.
• Easy Integration: Interfaces easily with microcontrollers and development boards for seamless integration into projects.
• Durable Construction: Built with durable materials to withstand everyday use.
• Multiple Keys: Offers 16 programmable keys, expanding input options for users.
• Usage Tip:
• When using the 4×4 matrix keypad, refer to its datasheet or documentation to determine the row and column connections for each key.
• Utilize a library or code examples provided for your microcontroller to simplify the process of reading keypresses from the keypad.
• Caution:
• Handle the keypad with care to avoid damaging the keys or the internal circuitry.
• Ensure proper connections and voltage levels when interfacing with a microcontroller to prevent damage to both the keypad and the controller.
