Battery Capacity Indicator DC 8V-100V Voltmeter Voltage Gauge 12V 24V 48V 72V
Why choose the SUPNOVA Battery Monitor
- Our battery monitor uses a high-end chip, and the voltage test range of 8-100V, 12V,36V,48V,60V,72V, and 84V batteries can be used, It does not generate heat even when used at high voltages with high safety.
- It can accurately test the voltage, and the remaining capacity of electricity, show the percentage, it can set low and high voltage buzzer alarms.
- This product is independently developed and produced by our company and is suitable for various instruments, cars, golf carts, portable and convenient equipment, medical equipment, Electric bikes Motorcycles boats, etc.
- The battery tester with a power-off memory function, can retain settings when power is removed.
- Buzzer Alarm and temperature: The battery monitor can set low and high voltage buzzer alarms and a short press”M” key can switch voltage and temperature(Celsius).
Batter tester
|
|
|
---|---|---|

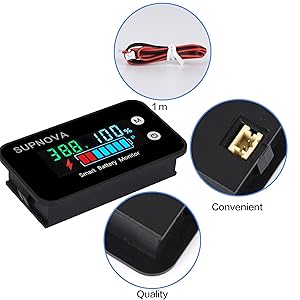

Detail picture
Our batter meter is a fully functional type, not only can display battery capacity and voltage but also displays the residual percentage capacity and temperature(Celsius). the wires’ length is 39.37 inches.
|

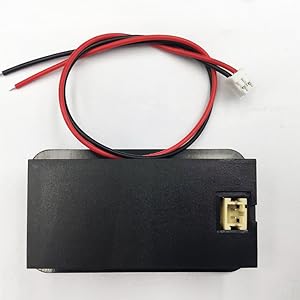

The back of the product
Removal wiring terminal, convenient for your installation and store.
|
ApplicationThe battery testers can be used for testing battery voltage and capacity for electric motorcycles, motorcycle golf carts, automotive, car, marine, RV, boat, etc. |
Color battery monitor
- The battery testers not only can accurately test the battery voltage and capacity but also the percentage display.
- The battery meter is suitable for 8-100V (12v 24v 36v 48v 60v 72v,84v ) Ternary lithium battery, lead-acid AGM battery, and lithium iron phosphate battery. Default 12-volt lead acid battery with power-off memory function.
- The battery monitor meter is designed with a turn-on/off switch, convenient for your daily use.
- The battery monitors with power-off memory, you would not reset if the power off.
|
|
|
---|---|---|

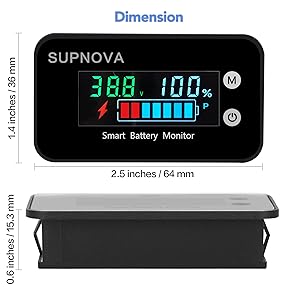

Dimension
|
function
|
how to connect
|
Parameter
Measuring range | DC8-100V |
Working current | <15MA |
Display | LCD |
Measurement accuracy | 1% |
Refresh rate | two times/second |
Operation Temp | 14F~140F |
Operation humidity | 10-80% |
Open Size | 2.28*1.1inch |
Dimensions | 2.5*1.4*0.6 inches (L*W*H) |
Operation pressure | 80-106Kpa |
Display color | color |
Product Weight | 0.75 ounce |
Working power consumption | 12MA |
