DC-DC BUCK CONVERTER STEP DOWN MODULE 200W 15A 60V TO 36V

Features:

• DC-DC BUCK CONVERTER STEP DOWN MODULE 200W 15A 60V TO 36V200W DC-DC high voltage power synchronous buck module
• 8-60V wide voltage input, 1-36V step-less adjustable output
• The maximum for peak output current 15A
• Perfect ultra-efficient circuit design up to 94% Low Ripple

Parameter:

• Name: Step down 15A 200W adjustable synchronous buck module
• Type: Non-isolated step-down module (BUCK)

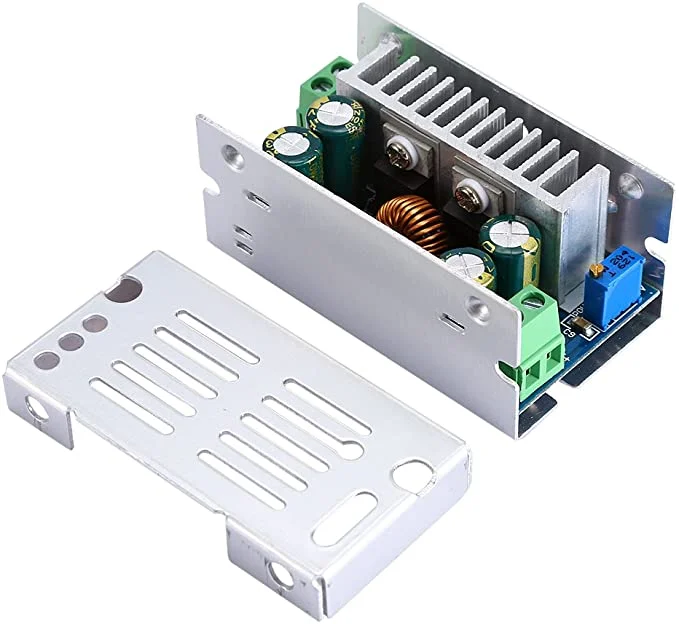

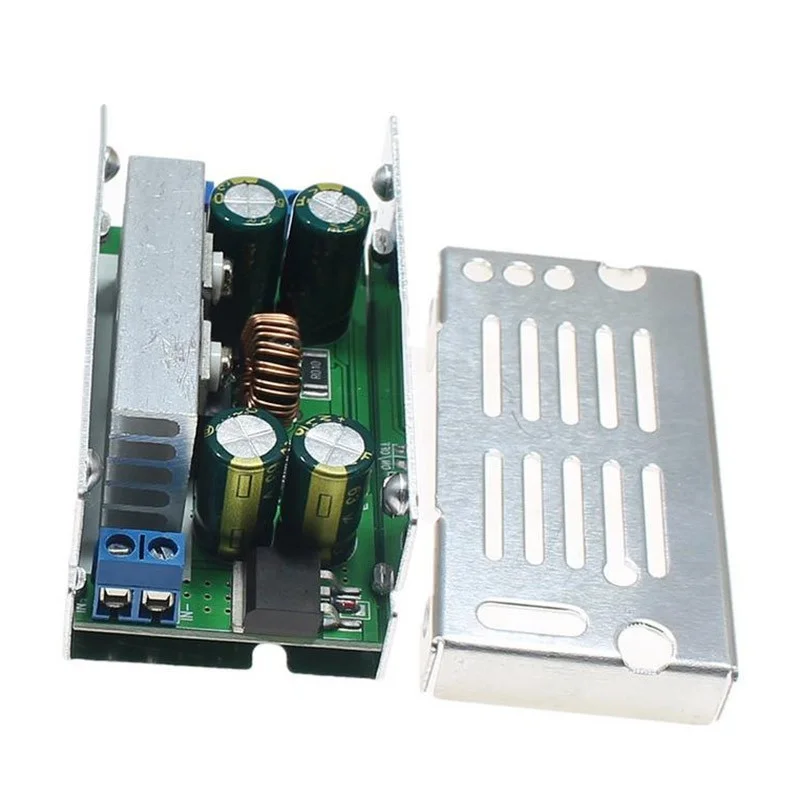

• Aluminum housing Size: 70x38x31mm / 2.75 “x1.5” x1.2 “
• Input voltage: 8-55V (limit 60V, please leave allowance)
• Output voltage: 1-36V continuously adjustable (the default output 12V)
• Output Current: 10A MAX15A normal
• Output power: natural cooling ventilated long-term power 100W
• To enhance heat dissipation up to 200W
• Such as long working hours, please note the left margin and make the heat rise
• Operating temperature: -10 to +85 degrees
• Operating frequency: 180KHz
• Conversion efficiency: up to 94%
• Overcurrent protection: Yes (the output current exceeds (15A) current maximum sample protection only)
• Reverse polarity protection: (reverse does not burn)
• Wiring: high current terminals, solderless, IN + input is positive, IN- is the input negative, OUT + positive output, OUT- output negative
