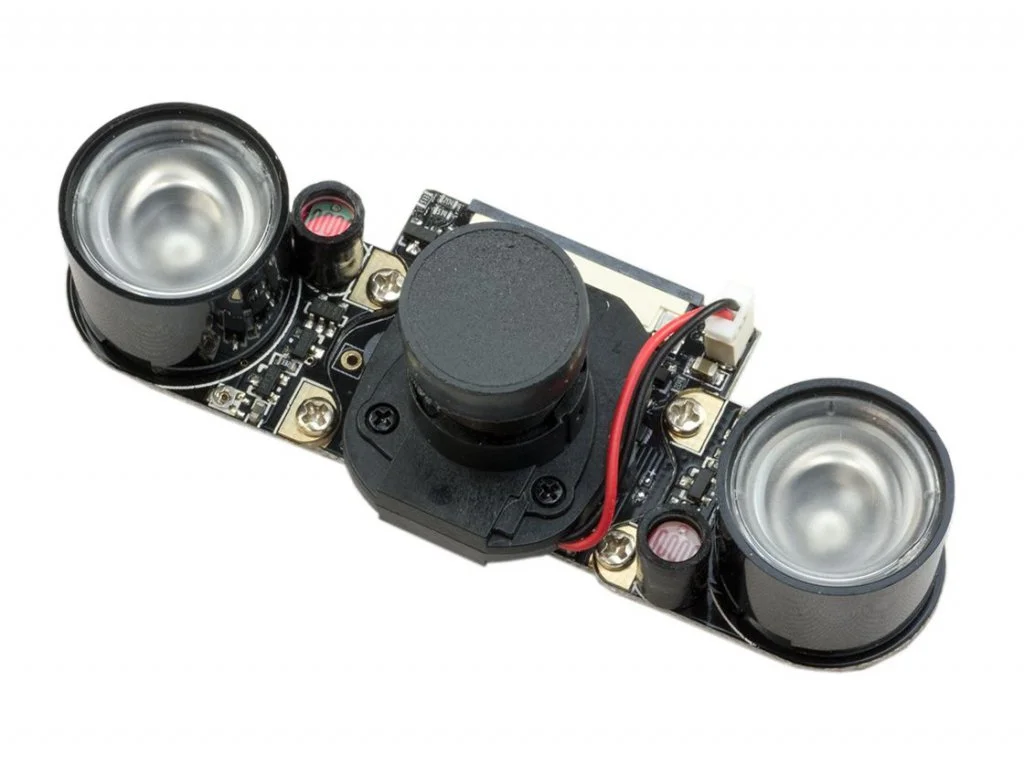

Raspberry PI Camera with IR
The Raspberry Pi IR-CUT Camera is a day and night camera. You can get the best imaging whatever it is in the daytime or at night. It’s a built-in IR-CUT camera, can be used during the day and night, When the camera in the daytime will switch to day mode, the camera image is a normal color image, When the camera at night will switch to night mode, the camera can normally identify the infrared fill light Of the light, which can be set through the software switch, to solve the other night vision version camera during the day to take pictures of the image color is not normal.
SPECIFICATIONS
-
Resolution: 5MP
-
Adjustable-focus: Yes
-
Infrared Night Vision: Yes
-
The angle of View: 75.7
-
Raspberry Compatible:
- Model 4 B
- Model 3 B+
- Model 3 B
- Model 3 A+
- Zero
- Zero W
- Raspberry Pi Camera, supports all revisions of the Pi
- Embedded removable IR-CUT filter, eliminating color distortion in the daylight
- Comes with infrared LED, supports night vision
- 5-megapixel OV5647 sensor
- Adjustable focus distance
- 4 screw holes
- Used for attachment
- Provides 3.3V power output
- Supports connecting infrared LED and/or fill flash LED
- Camera specifications
- CCD size: 1/4inch
- Aperture (F): 1.8
- Focal Length: 3.6mm
- The angle of view (diagonal): 75.7 degree
- Sensor best resolution: 1080p
- Dimensions: 31mm x 32mm
