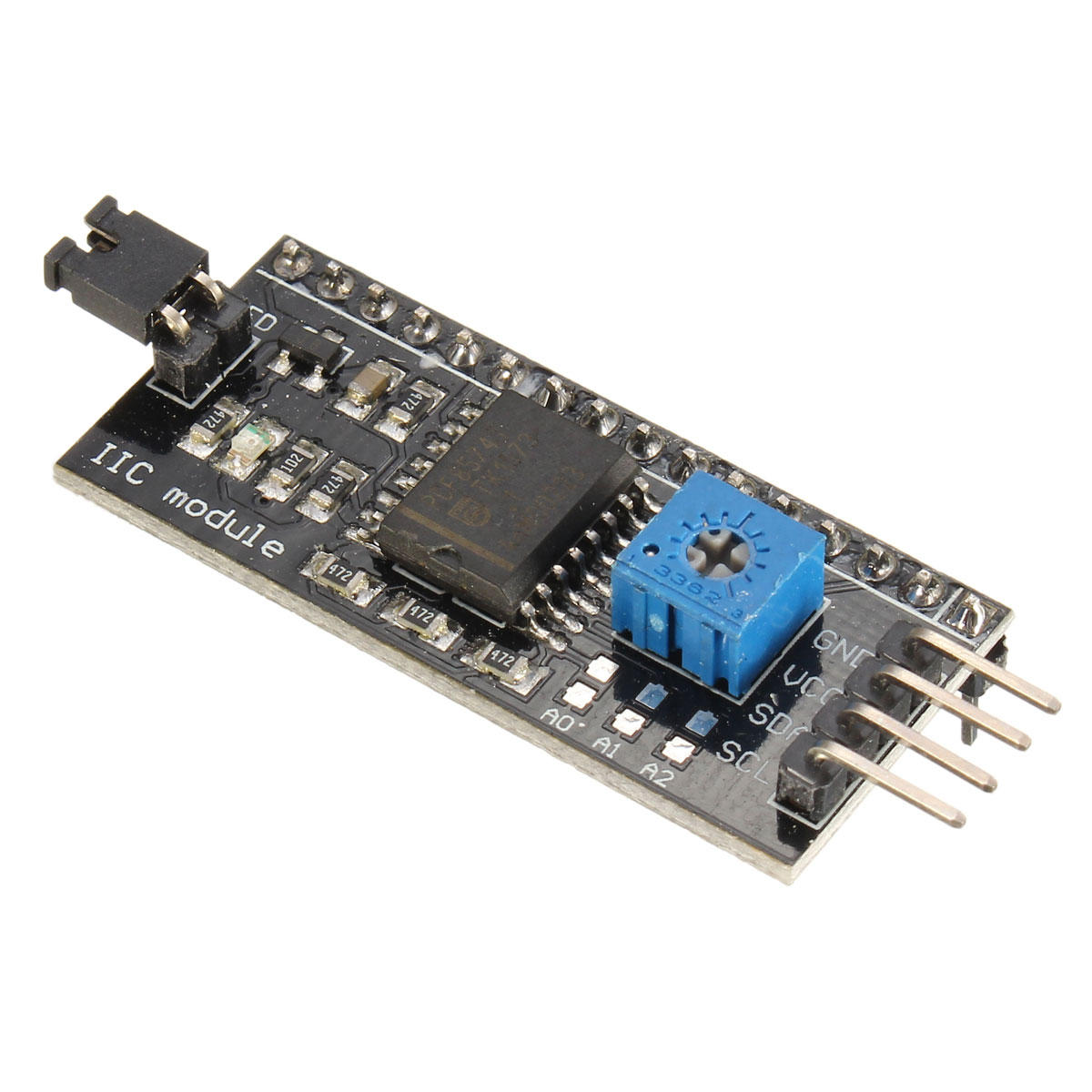

PCF8514T IIC I2C Serial Interface Adapter Module IIC I2C LCD Module

PCF8514T IIC I2C Serial Interface Adapter Module IIC I2C LCD Module that converts I2C serial data to parallel data for the LCD display.

These modules are currently supplied with a default I2C address of either 0x27 or 0x3F. To determine which version you have check the black I2C adaptor board on the underside of the module. If there a 3 sets of pads labelled A0, A1, & A2 then the default address will be 0x3F. If there are no pads the default address will be 0x27.

The module has a contrast adjustment pot on the underside of the display. This may require adjusting for the screen to display text correctly.

Features:-

• Operating Voltage: 5V
• Backlight and Contrast is adjusted by potentiometer
• Serial I2C control of LCD display using PCF8574
• Come with 2 IIC interface, which can be connected by Dupont Line or IIC dedicated cable
• Compatible for 16×2 LCD
• This is another great IIC/I2C/TWI/SPI Serial Interface
• With this I2C interface module, you will be able to realize data display via only 2 wires.
