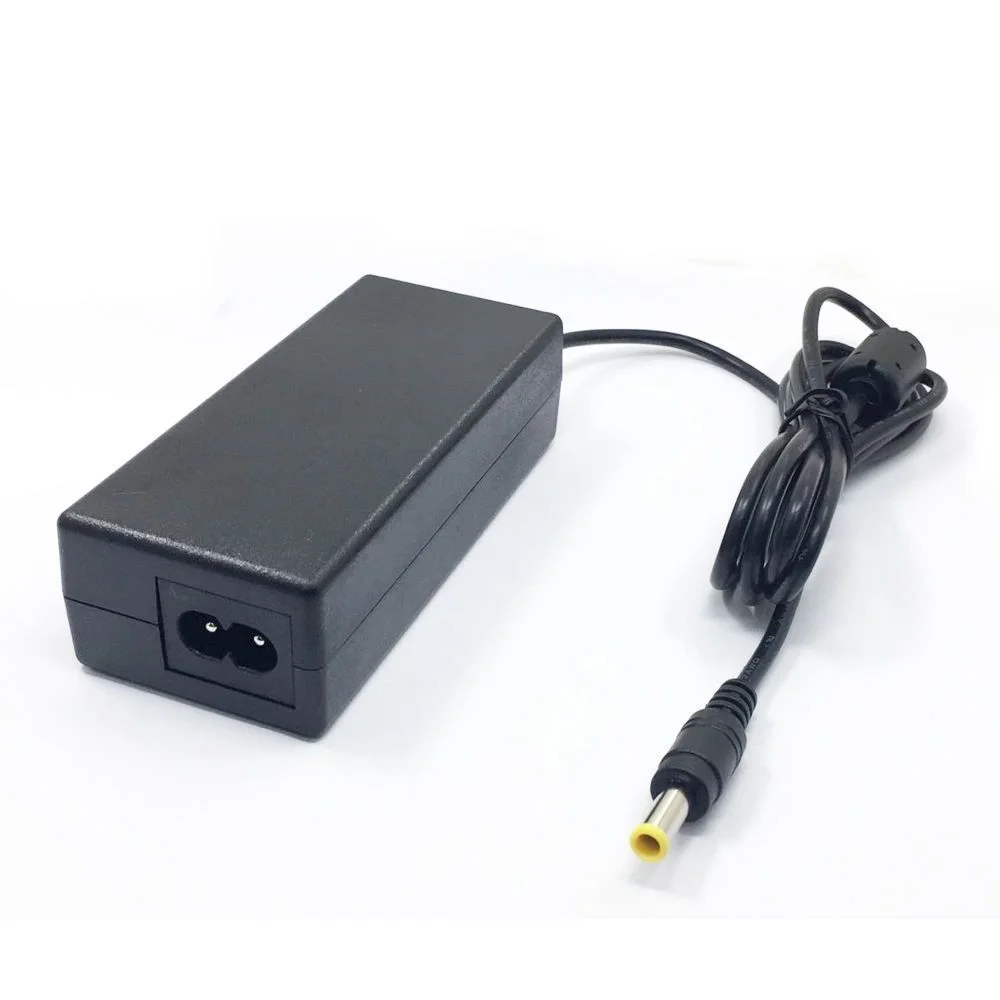

12V 2A Power Adapter

12V 2A Power Adapter can supply a load current of up to 2A. This power supply is compatible with UNO and MEGA models of the famous Arduino Board.

Specifications:

• OUTPUT DC VOLTAGE:DC 12V
• RATED CURRENT:DC 2A
• RATED POWER:24W
• Output adaptor jack size: Outer Diameter: 5.5mm . Inner Diameter: 2.1-2.5mm
• Plug type: US plug
• RIPPLE&NOISE:120mVp-p
• SETUP,RISE TIME:500ms,20ms/230VAC
• HOLD UP TIME(TYP.):30ms/230VAC 25ms/115VAC at full load
• INPUT VOLTAGE RANGE:AC 100-240V 50/60Hz
• FREQUENCY RANGE: 47-63HZ
• EFFICIENCY(Typ.):> 80%
• LEAKAGE CURRENT:1mA/240VAC
• NVIRONMENT:WORKING TEMP -10~+60C
• WORKING HUMIDITY: 20-90%RH non-condensing
• STORAGE TEMP,HUMIDITY:-20~+85C,10-95%RH
• TEMP.COEFFICIENT: 0.03%C(0-50C)
• DIMENSION: 60X38X30 mm

Features 12V 2A Adapter:

• It is a convenient power supply for your devices.
• It is built-in overvoltage, over current and short circuit protection.
• It has a wide voltage function; it conforms to the safety standards.
• Its Pulse Width Modulation design ensures the stability and efficiency of the power supply.
• It has a constant and stable voltage output.
• It provides stable power to your devices.

Applications:

• It is widely used in LED strip lights, wireless routers, and HUB.
• it is also used in the security surveillance industry, CCTV cameras, CD players, VCD players.
• it is used in portable game machines, radio systems, and other industrial applications.

NOTE

Adapter switching power supply 12 V 2 A, 2 units,
wall outlet 0.217×0.083 in US Power DC
Input Voltage: 100-240V AC
Output voltage: 12 V DC 2000 mA
Idea for CCTV camera, audio amplifier, HUB, router and low voltage single color 3528/5050 LED strip lights
Please note that the maximum total watt of this adapter should not exceed 48 watts

How to find the correct power adapter for your electrical device
The only thing that you need to know is the voltage / volts (V) and amperage (A) of the device, this adapter is 12 volts / 2 amps. Make sure your device’s power supply is DC 12V 2A as well
